nanoSDI2PAL

Click image to enlarge nanoSDI2PAL
HD-SDI to Composite PAL converter

The nanoSDI2PAL is a HD-SDI to PAL composite video converter on a miniPCI-express form factor card. The nanoSDI2PAL automatically captures, scales and converts High Definition HD-SDI to PAL composite video. The compact form factor means the nanoSDI2PAL is ideal for video conversion in SWaP constrained systems.

The nanoSDI2PAL accepts SMPTE 292M compliant HD-SDI signals on a 75 Ohm MCX connector. The HD-SDI video input is captured, scaled and converted to analogue composite PAL video. A 75 Ohm analogue composite output provides a high quality PAL video output for driving composite video display or connection to analogue video recording systems.

The nanoSDI2PAL is an intelligent module that requires no user configuration and is completely operating system neutral. The nanoSDI2PAL is simply powered via the miniPCI-express connector.

NB: Preliminary Information Subject To Change
Add to Quote Datasheet
HD-SDI PAL scan converter video format converter

Highlights

  • HDSDI-to-PAL video conversion
  • Capture / Scale / Convert HD-SDI video to Composite PAL
  • SMPTE 292M HD-SDI input up to 1080p30
  • 1x HD-SDI input – 75 Ohm MCX connector
  • Composite PAL B/G/H/I analogue output
  • Single +3.3V operation
  • Extended operating temperature range (40˚C to +85˚C)
  • Operating system neutral
  • Very small footprint miniPCI-express form factor.
Video Input
  • SMPTE compliant SDI input.
  •          SMPTE 259M Standard definition (NTSC and PAL)
  •          SMPTE 292M High definition (up to 1080p30)
  •          SMPTE 424M 3G (up to 1080p60)
  • 75 Ohm MCX connector used for HD-SDI signalling.
Video output
  • Composite video output
  • Supported output standards:
  •          CCIR-PAL
  •          PAL-B, PAL-G, PAL-H, PAL-I
  • 75 Ohm output impedance.
Power
  • Single +3.3V power operation (from miniPCIe socket)
Miscellaneous
  • Intelligent module – no drivers required.
  • Standard full height miniPCI-Express form factor
  • Operating temp –40˚C to +85˚C

Documentation

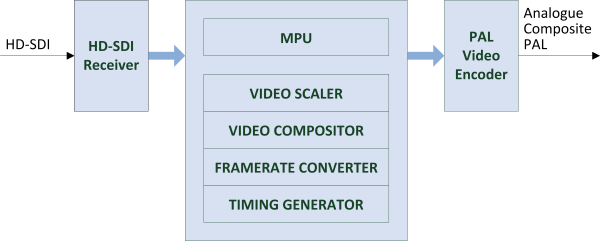

nanoSDI2PAL Block Diagram
